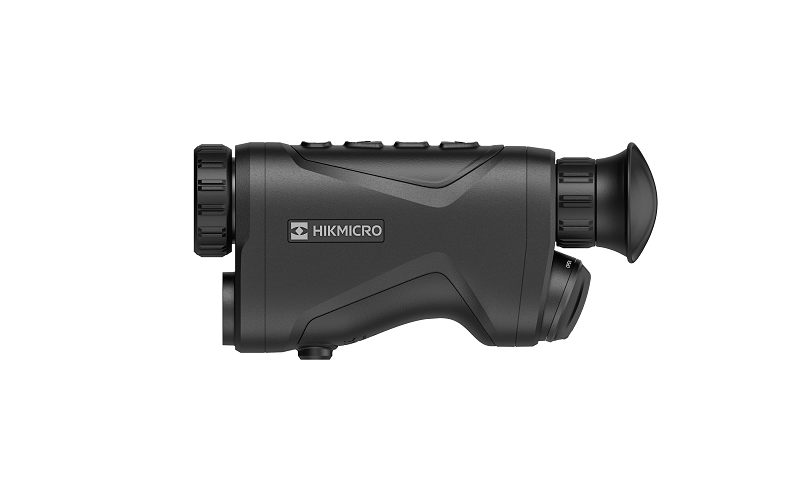

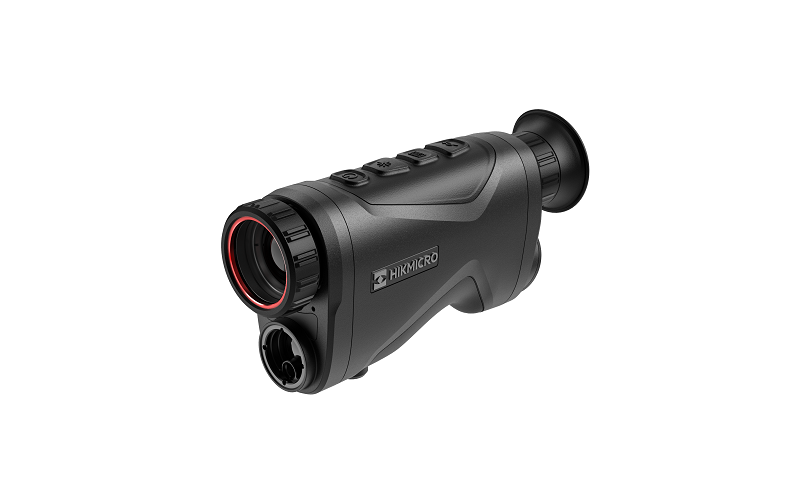

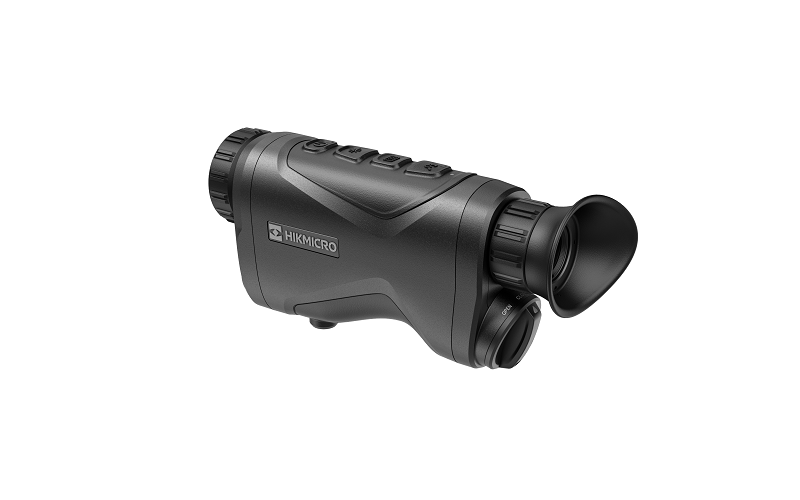

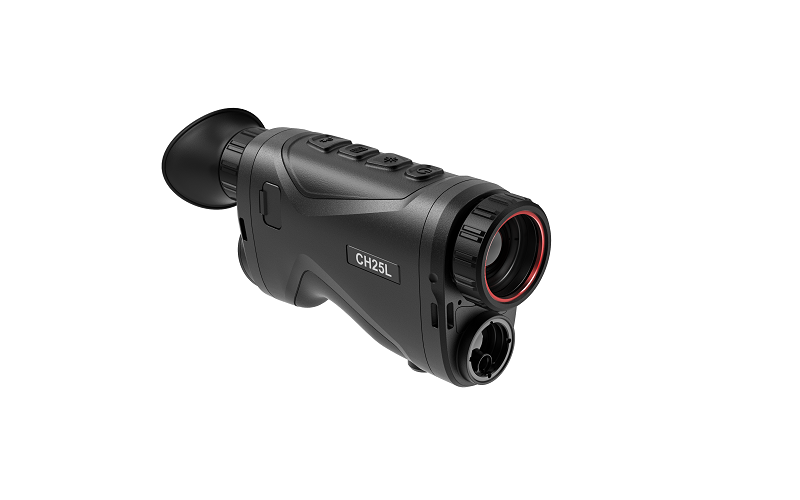

HIKMICRO Condor CH25L Thermal Monocular with a Built-In Precision Laser Rangefinder.
The Hikmicro Condor CH25L Thermal Vision Monocular is the perfect companion for outdoor enthusiasts, hunters, and wildlife watchers. Designed for both day and night use, this advanced monocular features a state-of-the-art 384 × 288 @ 12 μm infrared detector and a high-resolution 1024 × 768 OLED display. With its impressive thermal sensitivity of less than 20 mK NETD, you can expect unparalleled image quality, revealing intricate details in even the most challenging weather conditions.
Imagine being able to accurately measure distances up to 1,000 m with the built-in laser rangefinder while observing wildlife or navigating through dense forests. Whether you're birdwatching, hunting, or engaging in nighttime adventures, the Condor CH25L makes it easy to spot and identify targets, ensuring you never miss a moment of your outdoor experience. Its lightweight and compact design, combined with a robust construction, makes it an ideal tool for on-the-go exploration.
Equipped with advanced features such as Zoom Pro for digital zooming without loss of quality and Image Pro for enhancing detail recognition, this monocular is sure to impress. With up to 4.5 hours of continuous operation on a single charge, you can rely on the Condor CH25L for all your outdoor pursuits, making it a must-have for families, beginners, and experienced users alike.
Thermal Module | |
---|---|
Image Sensor | VOx Uncooled Focal Plane Arrays |
Resolution | 384 × 288 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mK (@25°C), F# = 1.0 |
Lens (Focal Length) | 25 mm, f1.0 |
Focus Mode | Focus Ring |
Detection Range | 1,200 m |
Focusing Distance | 2.5 m |
Magnification | 2.5× to 20.0× (8×) |
Field of View (H × V) | 10.5° × 7.9° / 18.3 m × 13.8 m @ 100 m |
Image Display | |
Display | 1024 × 768, 0.39-inch, OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 4 mm |
Eye Relief | 15 mm |
Diopter (Range) | -5 D to +3 D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Image Pro | Yes |
Zoom Pro | Yes |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Audio Recording | Yes |
Standby Mode | Yes |
Storage | Yes |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | 4.5-hour continuous running with CVBS and hotspot function off (@25°C) |
Type-C Power Supply | 5 VDC, 2 A; Supports External Power Supply |
General | |
Protection Level | IP67 |
Dimension | 180.7 mm × 52.7 mm × 85.4 mm |
Weight | 386 g without battery |
Working Temperature | -30°C to +55°C |
Laser Rangefinder | |
Safety Class for Laser | Class 1 |
Wavelength | 905 nm |
Measuring Range | 1,000 m |
Measurement Accuracy | ± 1 m |
Min. Measuring Range | 10 m |
