Hikmicro Condor CH35L Thermal Vision Monocular (LRF, 384x288, 35mm)

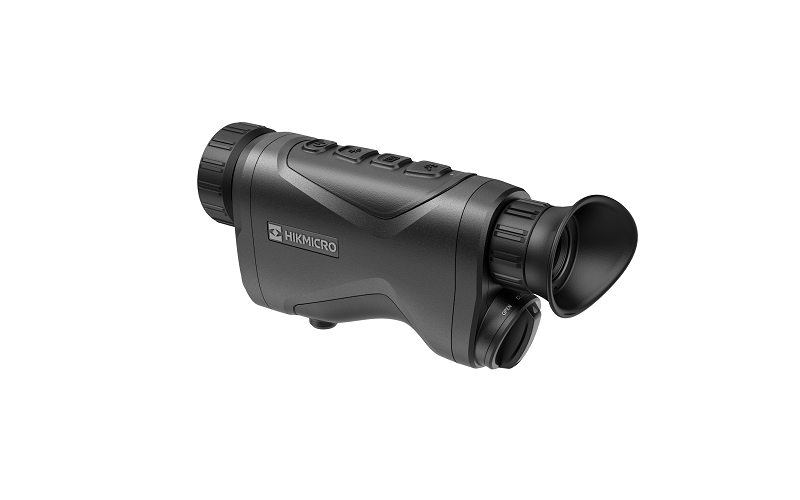

HIKMICRO Condor CH35L Thermal Monocular - Image 2
HIKMICRO Condor CH35L Thermal Monocular - Image 3
HIKMICRO Condor CH35L Thermal Monocular - Image 4
HIKMICRO Condor CH35L Thermal Monocular - Image 5

Hikmicro Condor CH35L Thermal Vision Monocular (LRF, 384x288, 35mm)

Hikmicro Condor CH35L Thermal Vision Monocular (LRF, 384x288, 35mm) Description HIKMICRO Condor CH35L Thermal Monocular with a Built-In Precision Laser Rangefinder. The Hikmicro Condor CH35L Thermal Vision Monocular is designed for those who demand precision and clarity in their observations, whether in the wild or during nighttime adventures. Equipped with...
Vendor: Hikmicro
SKU: CH35L
R 46,979.00
R 46,979.00

Hikmicro Condor CH35L Thermal Vision Monocular (LRF, 384x288, 35mm) Description

HIKMICRO Condor CH35L Thermal Monocular with a Built-In Precision Laser Rangefinder.

The Hikmicro Condor CH35L Thermal Vision Monocular is designed for those who demand precision and clarity in their observations, whether in the wild or during nighttime adventures. Equipped with a high-performance 384 x 288 infrared detector and a stunning 1024 x 768 OLED display, this monocular ensures you never miss a detail. With a remarkable thermal sensitivity of less than 20 mK NETD, you can expect exceptional image quality, even in the most challenging weather conditions.

Imagine being able to stalk your prey or observe wildlife with confidence, knowing that the integrated 1,000 m laser rangefinder will accurately measure distance in low-light situations. It's an invaluable tool for forest hunting, birdwatching, or even rescuing scenarios. The lightweight design, at just 400 g, along with an ergonomic build, makes the Condor CH35L incredibly easy to carry on all your adventures. With a large range of magnification from 3.5× to 28.0×, you can effortlessly zoom in on distant objects without losing clarity, thanks to its advanced image processing technology.

The Condor CH35L is not just about functionality; it's built for user comfort too. Its compact form allows for easy handling, making it suitable for both beginners and seasoned users alike. Battery life is also a strong point, with up to 4.5 hours of continuous operation, ensuring that you’re equipped for prolonged usage without interruption. Whether you are navigating through dense woods or scanning open fields, the Hikmicro Condor CH35L makes thermal imaging accessible and enjoyable.


Features

  • High sensitivity thermal module with NETD < 20 mK (@25°C, F# = 1.0)
  • 384 × 288 resolution with a 12 μm detector for sharp images
  • 1024 × 768 resolution 0.39-inch OLED display for clear viewing
  • Advanced image processing technology for enhanced detail recognition
  • Zoom Pro feature for digital zooming without losing picture quality
  • Replaceable and rechargeable Li-ion battery for convenience
  • Up to 4.5 hours of continuous operation, perfect for extended use
  • Lightweight design at 400 g with a compact and ergonomic build

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length) 35 mm, f1.0
Focus Mode Focus Ring
Detection Range 1,800 m
Focusing Distance 3.5 m
Magnification 3.5× to 28.0× (8×)
Field of View (H × V), Degrees / m @100 m 7.5° × 5.6°/13.1 m × 9.7 m @ 100 m
Image Display
Display 1024 × 768, 0.39-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 4 mm
Eye Relief 15 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Image Pro Yes
Zoom Pro Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Yes
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 4.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply 5 VDC, 2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 184.9 mm × 53 mm × 87.8 mm
Weight 400 g without battery
Working Temperature -30°C to +55°C
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Measuring Range 1,000 m
Measurement Accuracy ± 1 m
Min. Measuring Range 10 m
