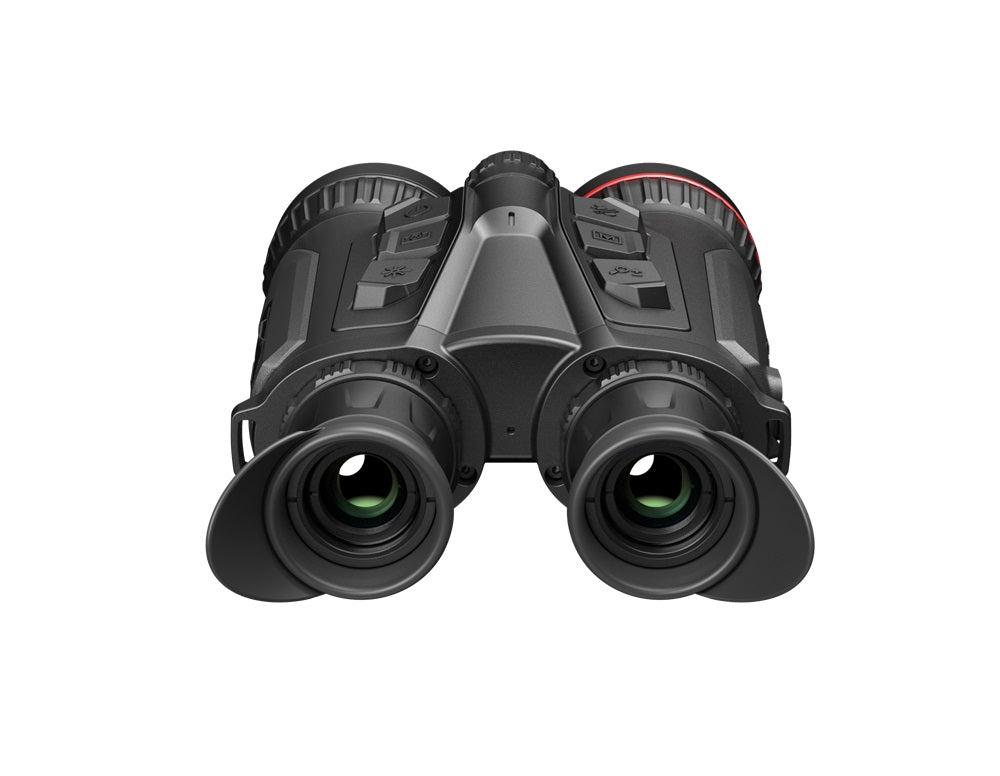

HIKMICRO Habrok Pro HX60L Multi-Spectrum Binocular - Image 4

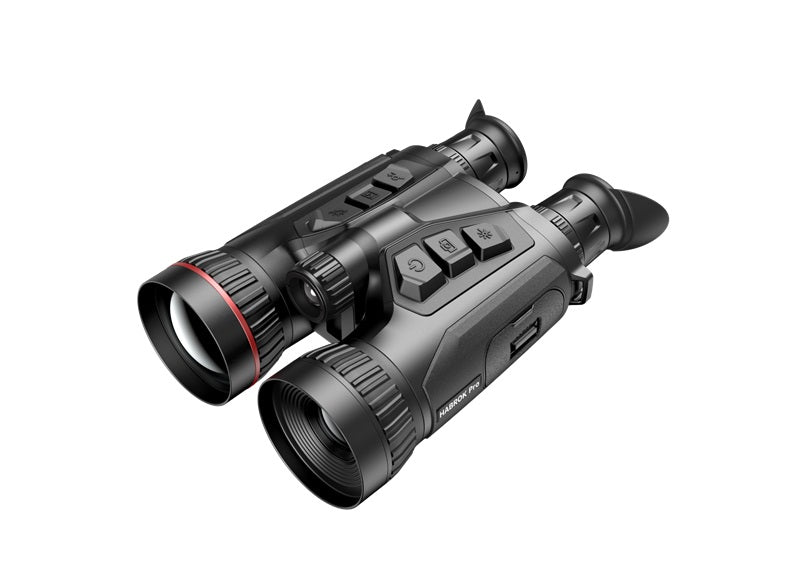

Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars (850nm, LRF, 1280x1024, 25mm)
HIKMICRO Habrok Pro HX60L Multi-Spectrum Binocular - Image 2
HIKMICRO Habrok Pro HX60L Multi-Spectrum Binocular - Image 3

Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars (850nm, LRF, 1280x1024, 25mm)

Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars (850nm, LRF, 1280x1024, 25mm) Description HIKMICRO Habrok Pro HX60L Multi-Spectrum Binocular. Experience the pinnacle of thermal imaging with the Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars. Designed for outdoor enthusiasts, hunters, and professionals, these binoculars seamlessly integrate advanced thermal and optical imaging technology....
Vendor: Hikmicro
SKU: HX60L
R 129,249.00
R 129,249.00

Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars (850nm, LRF, 1280x1024, 25mm) Description

HIKMICRO Habrok Pro HX60L Multi-Spectrum Binocular. Experience the pinnacle of thermal imaging with the Hikmicro Habrok HX60L Pro Multi-Spectrum Thermal Binoculars. Designed for outdoor enthusiasts, hunters, and professionals, these binoculars seamlessly integrate advanced thermal and optical imaging technology. Equipped with an 18 mK NETD sensitivity and a high-resolution 1280 × 1024 thermal detector paired with a 60 mm lens, the HX60L ensures exceptional image clarity and detail recognition, even in challenging weather or low-light conditions.

Imagine spotting elusive wildlife or navigating through dense foliage effortlessly—these binoculars make it possible. The Hikmicro Habrok HX60L is not just about thermal imaging; it features an integrated 4K digital detector that guarantees stunning visuals during both day and night. Plus, with a powerful 1000 m laser rangefinder and a replaceable IR emitter at 850 nm, this versatile tool is ideal for various applications including hunting, birdwatching, search and rescue missions, and marine observation.

Designed by HIKMICRO, a leader in thermal imaging technology and a subsidiary of the renowned Hikvision group, the Habrok HX60L reflects a commitment to quality and innovation. Whether you’re a seasoned professional or a passionate outdoor adventurer, these binoculars are engineered to enhance your experience, making every observation an unforgettable moment.


Features

  • 1,280 × 1,024 resolution @ 12μm thermal detector
  • High sensitivity thermal module NETD < 18 mK (@ 25°C, F# = 1.0)
  • 60 mm, F1.0 lens with thermal detection range up to 3,100 m
  • 3,840 × 2,160 4K ultra high-resolution, 60 mm, F2.2 digital camera
  • 1,920 × 1,080 resolution 0.49-inch OLED display
  • Replaceable 850 nm IR emitter and 1,000 m Laser Rangefinder
  • 7 h+ continuous operation time with replaceable battery pack
  • Lightweight design at 1,050 g with a compact and ergonomic build

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 1,280 × 1,024
Frame Rate 25 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@ 25°C, F# = 1.0)
Lens (Focal Length) 60 mm, F1.0
Focus Mode Focus Ring
Detection Range 3,100 m
Focusing Distance 3 m
Magnification 2.6× to 26.0× (10×); Support 1× continuous zooming
Field of View (H×V), Degrees / m @100 m 14.6°×8.8°/25.6 m×15.4 m
Optical Module
Image Sensor 1.88” Progressive Scan CMOS
Resolution 3,840 × 2,160
Focal Length 60 mm, F2.2
Working Distance 3 m
Focus Mode Focus Ring
Magnification 5.5× to 22.0× (4×)
Field of View (H×V), Degrees/m @100 m 7.3°× 4.1° / 12.6 m × 7.2 m
Smart IR Yes
IR Illuminator Wavelength 850 nm
Viewing Range at Night 400 m
Replaceable IR Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1,920 × 1,080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 2.0 Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time Up to 7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
Type-C Power Supply 5 V DC/2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 152.8 mm × 81.95 mm × 231.5 mm (6.0″ × 3.2″ × 9.1″)
Weight 1,050 g with battery pack
Working Temperature -30°C to 55°C
Interpupillary Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Measuring Range 1000 m
Measurement Accuracy ±1 m
Minimum Measuring Range 10 m
