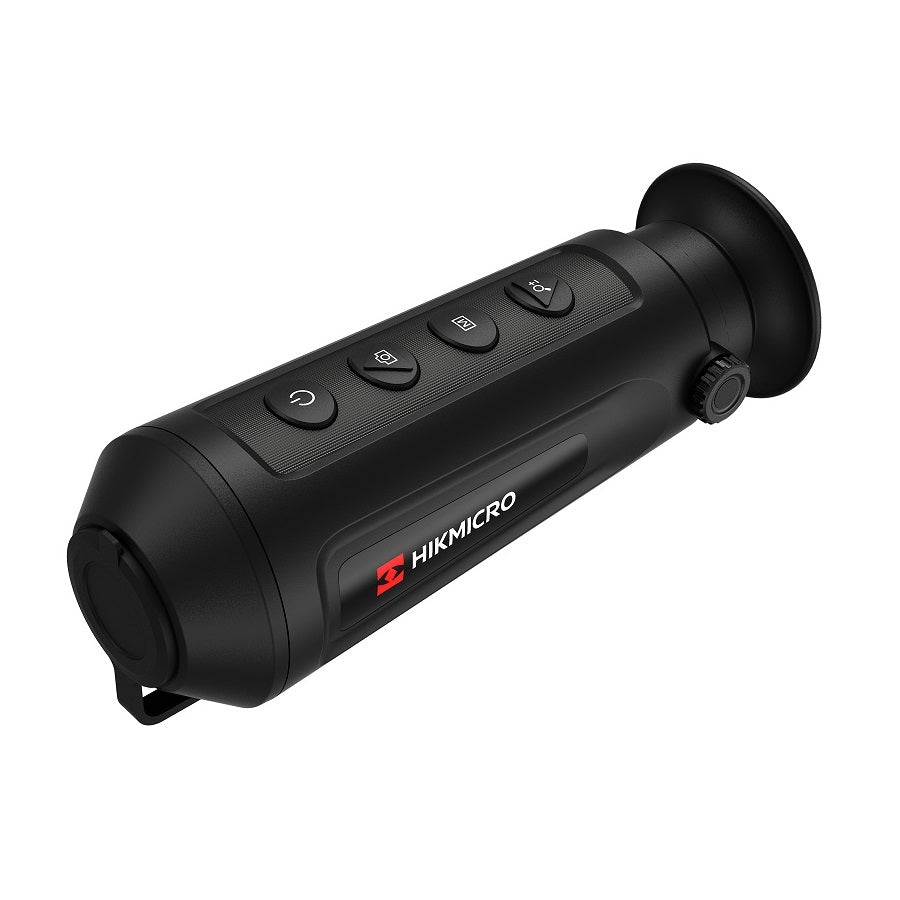

Hikmicro Lynx LC06S Thermal Vision Monocular (160x120, 6.2mm)

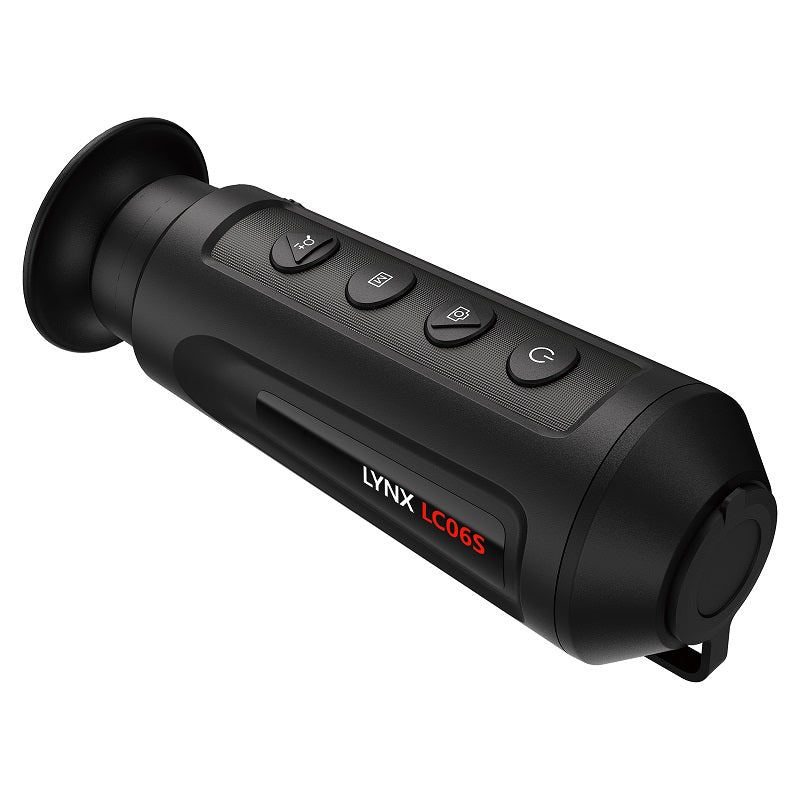

HIKMICRO Lynx LC06S Handheld Thermal Monocular - Image 2

Hikmicro Lynx LC06S Thermal Vision Monocular (160x120, 6.2mm)

Hikmicro Lynx LC06S Thermal Vision Monocular (160x120, 6.2mm) Description The Hikmicro Lynx LC06S Handheld Thermal Monocular is your gateway to a new world of observation, whether you're exploring the great outdoors or conducting nighttime surveillance. Featuring a high-resolution 160 × 120 infrared detector paired with an impressive 800 × 600...
Vendor: Hikmicro
SKU: LC06S
R 7,799.00
R 7,799.00

Hikmicro Lynx LC06S Thermal Vision Monocular (160x120, 6.2mm) Description

The Hikmicro Lynx LC06S Handheld Thermal Monocular is your gateway to a new world of observation, whether you're exploring the great outdoors or conducting nighttime surveillance. Featuring a high-resolution 160 × 120 infrared detector paired with an impressive 800 × 600 OLED display, this thermal monocular delivers crisp, clear images even in total darkness. Imagine being able to spot wildlife on a night hike or locate a lost item in low visibility—this device makes it effortless.

Designed with versatility in mind, the Lynx LC06S excels in various applications, including hunting, hiking, search and rescue missions, and more. With a detection range of up to 250 meters, you can confidently identify your surroundings, enhancing your safety and experience during nighttime adventures. The device is lightweight and portable, making it an excellent addition to any outdoor enthusiast's gear.

Setting up the Hikmicro Lynx LC06S is a breeze. Its user-friendly interface ensures you can start observing in just moments, whether you're a seasoned professional or a beginner. The built-in rechargeable lithium battery provides up to 10 hours of continuous operation, allowing for extended use without the worry of running out of power. The monocular's Type-C interface also facilitates easy charging and connectivity.


Features

  • High sensitivity thermal module with 160 × 120 resolution
  • NETD < 35 mK (@25°C, F# = 1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • 800 × 600 resolution 0.32” OLED display
  • Built-in rechargeable lithium battery
  • Up to 10 hours continuous operation
  • Support for hotspot tracking
  • Type-C interface for easy charging

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 160 × 120
Frame Rate 50 Hz
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C, F# = 1.1)
Lens (Focal Length) 6.2 mm, F1.1
Detection Range 250 m
Focus Mode Focus Free
Focusing Distance 1 m
Magnification 1.0× to 4.0× (4×)
Field of View (H × V) 24.7° × 18.7° / 43.8 m × 32.9 m (@100 m)
Image Display
Display 800 × 600, 0.32”, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC Mode Auto, Manual, External Correction
Exit Pupil 20 mm
Eye Relief 6 mm
Diopter (Range) -5D to +4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Rechargeable Lithium Battery
Battery Operating Time 10 hours continuous running with CVBS and hotspot off (@25°C)
Type-C Power Supply DC 5 V/2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 158.4 mm × 60.4 mm × 57 mm
Working Temperature -20°C to 55°C
Weight 250 g
