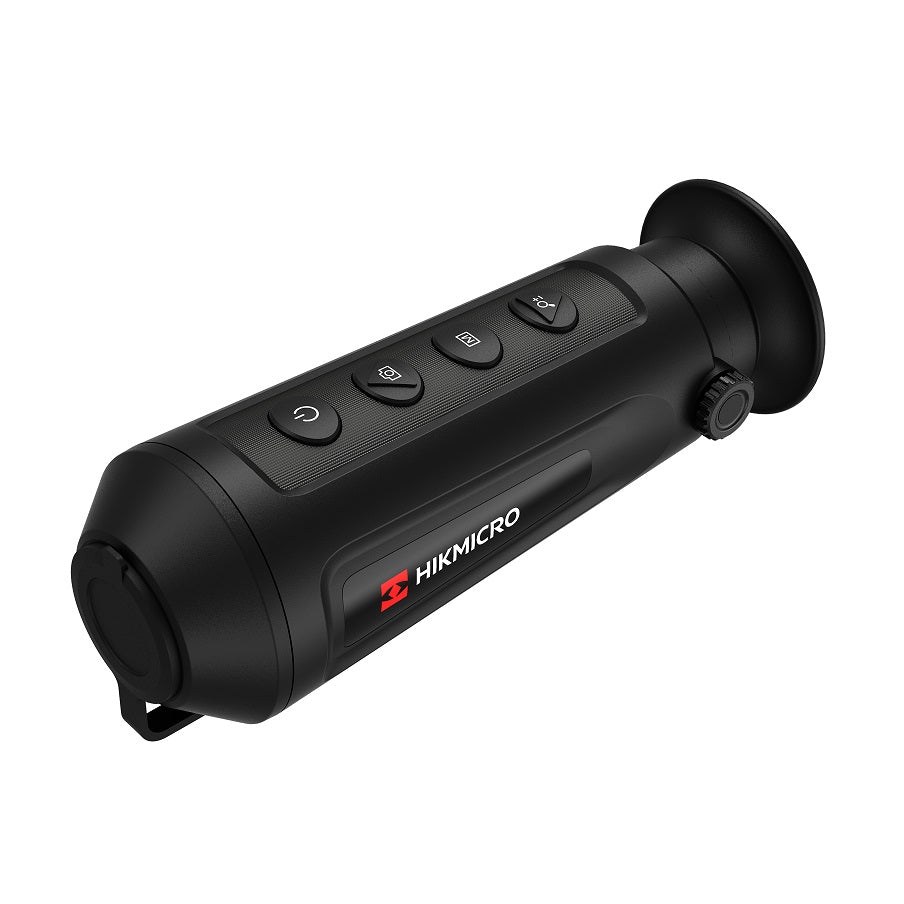

Hikmicro Lynx LE10S Thermal Vision Monocular (256x192, 9.7mm)

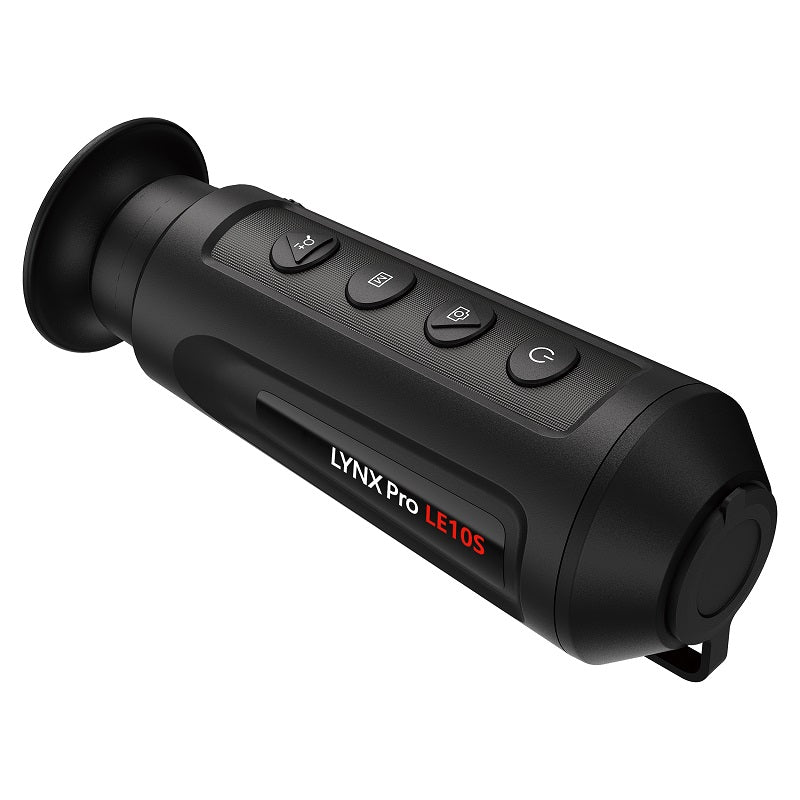

HIKMICRO Lynx LE10S Handheld Thermal Monocular - Image 2

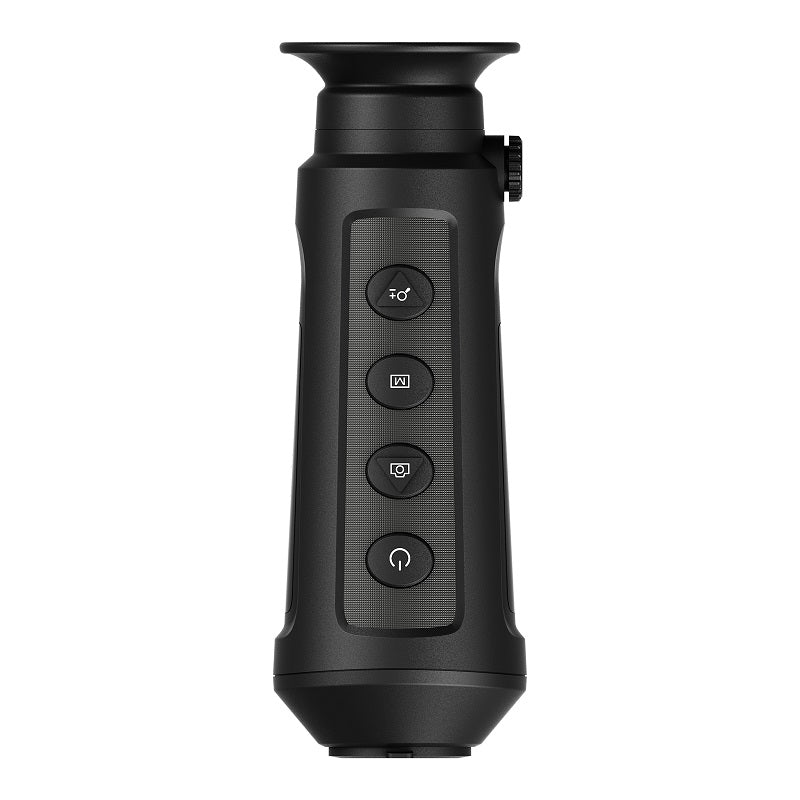

HIKMICRO Lynx LE10S Handheld Thermal Monocular - Image 3

Hikmicro Lynx LE10S Thermal Vision Monocular (256x192, 9.7mm)

Hikmicro Lynx LE10S Thermal Vision Monocular (256x192, 9.7mm) Description The Hikmicro Lynx LE10S Handheld Thermal Monocular is the perfect companion for outdoor enthusiasts, hunters, and rescue teams alike. With its advanced 256 × 192 infrared detector, this thermal monocular allows you to see clearly in total darkness, making it ideal...
Vendor: Hikmicro
SKU: LE10S
R 10,999.00
R 10,999.00

Hikmicro Lynx LE10S Thermal Vision Monocular (256x192, 9.7mm) Description

The Hikmicro Lynx LE10S Handheld Thermal Monocular is the perfect companion for outdoor enthusiasts, hunters, and rescue teams alike. With its advanced 256 × 192 infrared detector, this thermal monocular allows you to see clearly in total darkness, making it ideal for nighttime adventures or low-light situations. Imagine being able to spot wildlife or locate a lost person with ease, thanks to the Lynx LE10S's high-sensitivity thermal imaging capabilities.

This device features an impressive 800 × 600 OLED display that provides crisp images, ensuring that you never miss a detail, whether you're on a hiking trip or conducting a search and rescue operation. The compact and lightweight design makes it easy to carry, fitting comfortably in your hand or backpack, so you're always prepared for the unexpected. Plus, the Lynx LE10S is designed for user-friendly operation, allowing for quick observations and measurements without complicated setups.

Whether you're measuring distances, identifying hotspots, or simply enjoying the great outdoors, the Hikmicro Lynx LE10S offers versatility and reliability. With a rechargeable lithium battery that lasts up to 8 hours, you can explore the wilderness or conduct extended surveillance without worrying about losing power. This thermal monocular is not just a tool; it's your gateway to a world of possibilities in low-visibility conditions.


Features

  • 256 × 192 resolution, 12 μm, high sensitivity detector
  • NETD less than 35 mK (@25°C, F# = 1.0)
  • Adaptive AGC, DDE, and 3D DNR for enhanced image quality
  • 800 × 600 resolution 0.32” OLED display (Previous model – LC06: 720 × 540 resolution 0.2” OLED display)
  • Built-in rechargeable lithium battery for extended use
  • Up to 8 hours of continuous running time
  • Supports hotspot detection for easier target identification

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C, F# = 1.0)
Lens (Focal Length) 9.7 mm, F1.0
Focus Mode Focus Free
Detection Range 500 m
Focusing Distance 4 m
Magnification 1.5× to 12.0× (8×)
Field of View (H × V) 18.0° × 13.6° / 31.7 m × 23.8 m @100 m
Image Display
Display 800 × 600, 0.32-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 20 mm
Eye Relief 6 mm
Diopter (Range) -5D to +4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Rechargeable Lithium Battery
Battery Operating Time 8 hours continuous running with hotspot function off (@25°C); 6 hours with hotspot function on (@25°C)
Type-C Power Supply DC 5 V/2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 158.3 mm × 61 mm × 57 mm
Working Temperature – 20°C to 55°C
Weight 260 g
