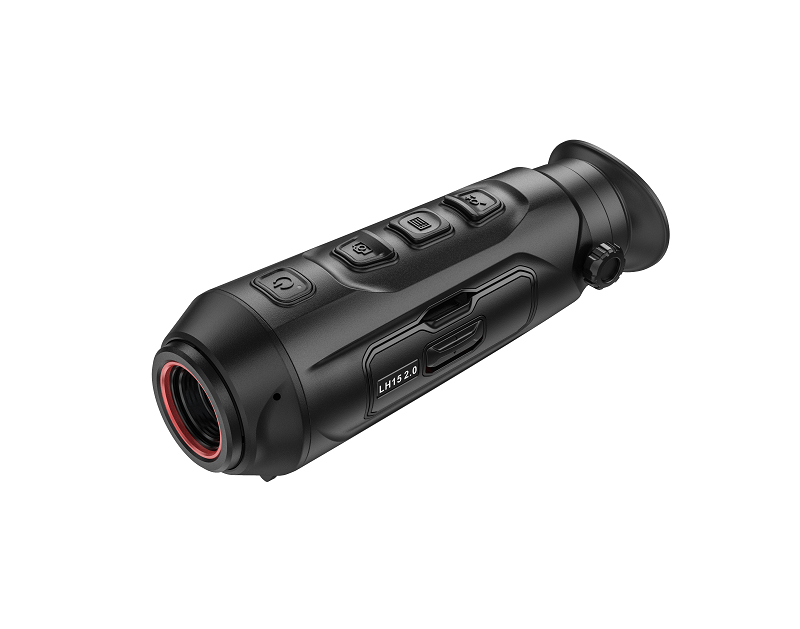

Hikmicro Lynx LH15 2.0 Thermal Vision Monocular (384x288, 15mm)

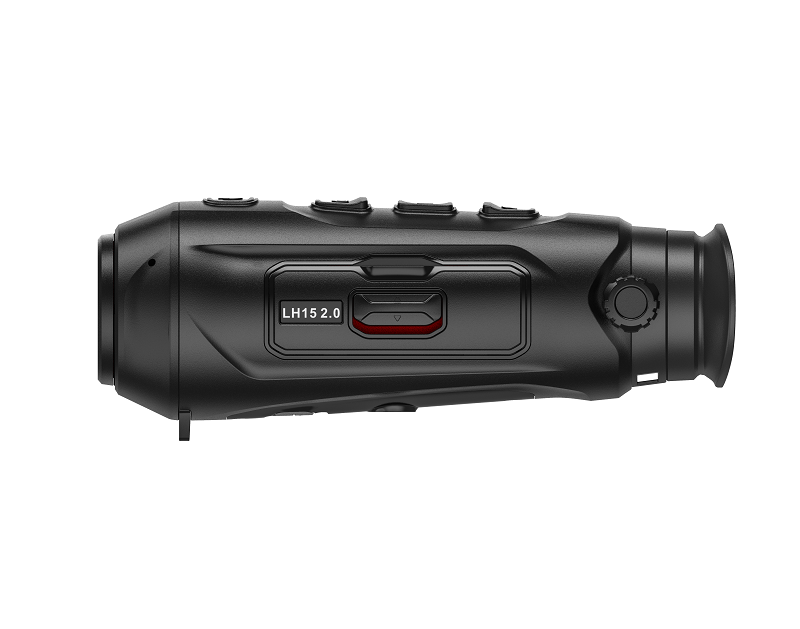

HIKMICRO Lynx LH15 2.0 Handheld Thermal Monocular - Image 2

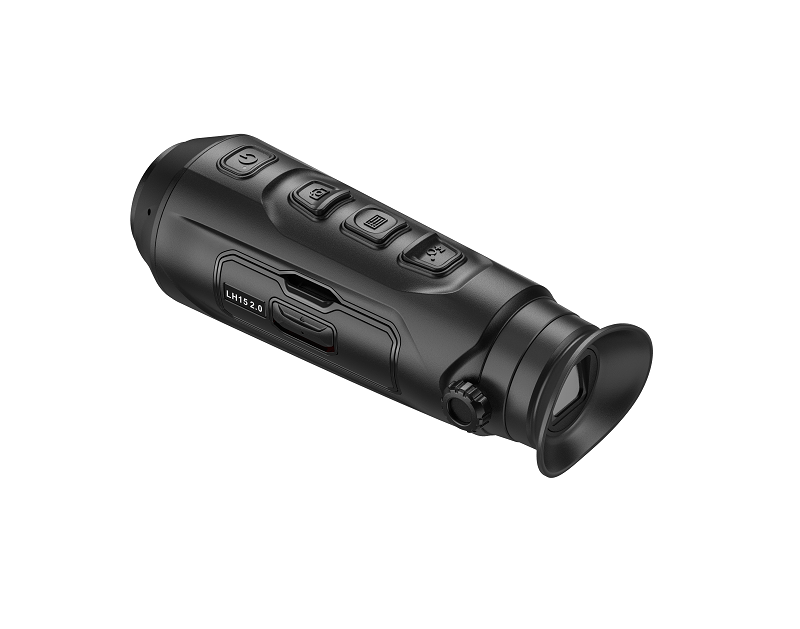

HIKMICRO Lynx LH15 2.0 Handheld Thermal Monocular - Image 3

Hikmicro Lynx LH15 2.0 Thermal Vision Monocular (384x288, 15mm)

Hikmicro Lynx LH15 2.0 Thermal Vision Monocular (384x288, 15mm) Description The Hikmicro Lynx LH15 2.0 Thermal Vision Monocular is an exceptional tool designed for both professional and recreational users seeking to explore the world in a whole new way. With its impressive 384x288 resolution and a high-sensitivity thermal sensor, this...
Vendor: Hikmicro
SKU: LH15 2.0
R 25,799.00
R 25,799.00

Hikmicro Lynx LH15 2.0 Thermal Vision Monocular (384x288, 15mm) Description

The Hikmicro Lynx LH15 2.0 Thermal Vision Monocular is an exceptional tool designed for both professional and recreational users seeking to explore the world in a whole new way. With its impressive 384x288 resolution and a high-sensitivity thermal sensor, this monocular enables you to detect heat signatures with stunning clarity, making it an ideal companion for wildlife observation, hunting, and even nighttime surveillance.

Imagine being able to identify animals in the dark or spot intruders from a distance of up to 750 meters. The Lynx LH15 2.0 does just that, offering a detection range that enhances your outdoor adventures. Whether you are a seasoned hunter or a nature enthusiast, this thermal monocular elevates your experience, giving you the edge in low-light conditions. Its lightweight design, weighing just 272 grams, ensures that it won't weigh you down, making it easy to carry on all your excursions.

Equipped with a manual focus feature, the Lynx LH15 2.0 allows users to easily adjust their view for optimal clarity. The compact and ergonomic design fits comfortably in your hand, ensuring prolonged use without discomfort. Plus, with a rechargeable and replaceable Li-ion battery providing up to 6.5 hours of operation, you can rely on this device for extended viewing sessions, whether you’re scouting in the woods or simply enjoying a night under the stars.


Features

  • High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
  • 384 × 288 resolution with 12μm detector
  • 1024 × 768 resolution 0.39-inch OLED display
  • Replaceable and rechargeable Li-ion battery
  • 270 g lightweight, with a compact and ergonomic design
  • Up to 6.5 hours of continuous operation

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length) 15 mm, f1.0
Detection Range 750 m
Focusing Distance 1.5 m
Magnification 1.4x to 11.2x (8x)
Field of View (H × V), Degrees / m @ 100 m 17.5° × 13.1°/30.8 m × 23.0 m
Image Display
Display 1024 × 768, 0.39-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 6.5-hour continuous running with CVBS and hotspot function off
Type-C Power Supply 5 VDC, 2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 164.0 mm × 56.0 mm × 60.8 mm
Weight 272 g without battery
Working Temperature -30°C to +55°C
