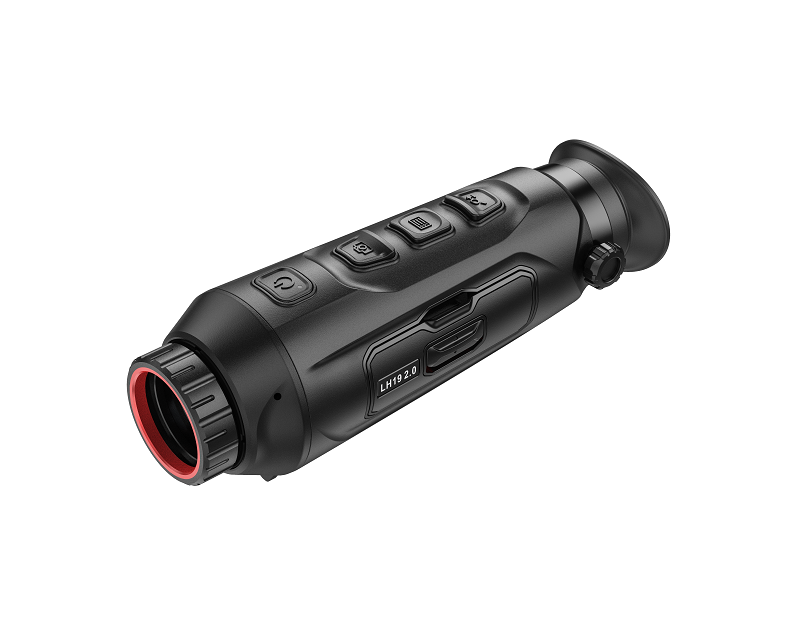

Hikmicro Lynx LH19 2.0 Thermal Vision Monocular (384x288, 19mm)

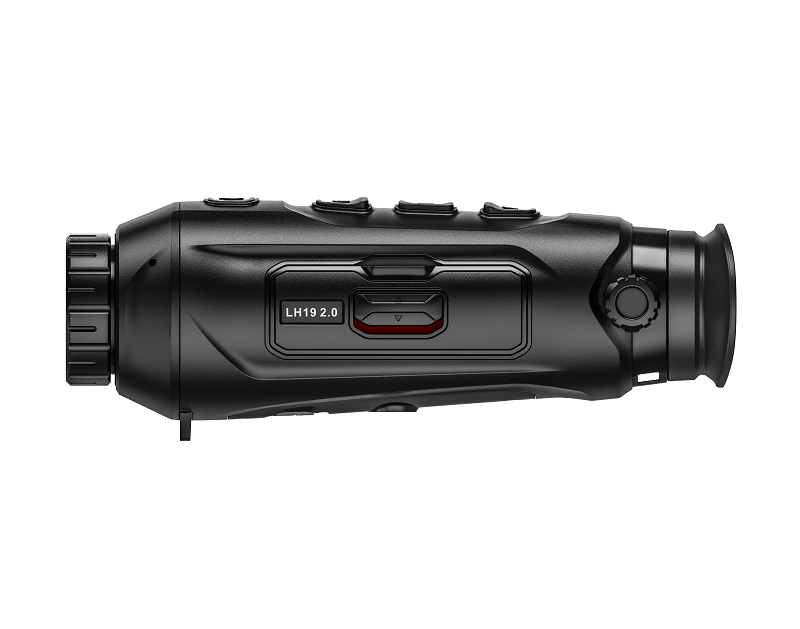

HIKMICRO Lynx LH19 2.0 Handheld Thermal Monocular - Image 2

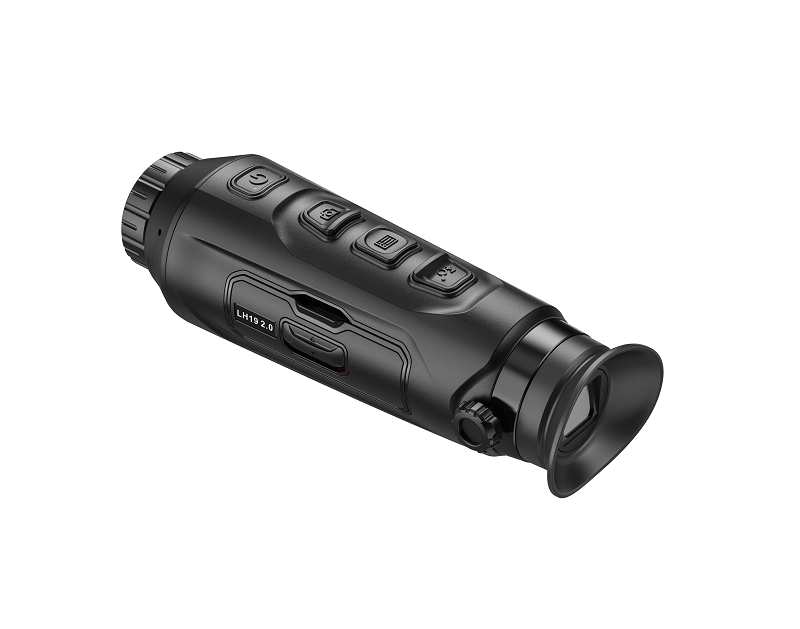

HIKMICRO Lynx LH19 2.0 Handheld Thermal Monocular - Image 3
Hikmicro Lynx LH19 2.0 Thermal Vision Monocular (384x288, 19mm)
HIKMICRO Lynx LH19 2.0 Handheld Thermal Monocular - Image 2
HIKMICRO Lynx LH19 2.0 Handheld Thermal Monocular - Image 3

Hikmicro Lynx LH19 2.0 Thermal Vision Monocular (384x288, 19mm)

Hikmicro Lynx LH19 2.0 Thermal Vision Monocular (384x288, 19mm) Description The Hikmicro Lynx LH19 2.0 Thermal Vision Monocular is the ultimate companion for outdoor enthusiasts, security professionals, and wildlife observers. With a high thermal sensitivity of NETD < 20mK and a powerful 384x288 VOx sensor, this monocular delivers stunningly clear...
Vendor: Hikmicro
SKU: LH19 2.0
R 28,499.00
R 28,499.00
Description

Hikmicro Lynx LH19 2.0 Thermal Vision Monocular (384x288, 19mm) Description

The Hikmicro Lynx LH19 2.0 Thermal Vision Monocular is the ultimate companion for outdoor enthusiasts, security professionals, and wildlife observers. With a high thermal sensitivity of NETD < 20mK and a powerful 384x288 VOx sensor, this monocular delivers stunningly clear and detailed thermal images, allowing you to see the unseen. Imagine being able to identify heat signatures from up to 900 meters away—this monocular makes it possible, enhancing your experience whether you're hunting, camping, or conducting surveillance.

One of the standout features of the Lynx LH19 is its manual focus capability, which empowers you to tailor your viewing experience with precision. Adjusting the focus to match your target distance is simple and intuitive, ensuring that you can quickly adapt to any situation. Weighing only 280 grams, this lightweight device is designed for portability, making it easy to carry along on your adventures. Its compact and ergonomic design fits comfortably in your hand, allowing for extended use without fatigue.

In addition to its remarkable thermal imaging abilities, the Lynx LH19 is equipped with a 0.39-inch OLED display featuring a resolution of 1024x768, ensuring that you can view your surroundings in high definition. With up to 6.5 hours of continuous operation on a single charge, you can explore the great outdoors without worrying about battery life. Whether you're a seasoned professional or a beginner, the Hikmicro Lynx LH19 provides an unparalleled thermal imaging experience that is both user-friendly and effective.


Features

  • High sensitivity thermal module with NETD < 20 mK (@25°C, F# = 1.0)
  • 384 × 288 resolution with a 12 μm detector for superior image quality
  • 1024 × 768 resolution on a 0.39-inch OLED display for clear visibility
  • Replaceable and rechargeable Li-ion battery for convenience
  • Lightweight design at only 280 g, perfect for outdoor use
  • Up to 6.5 hours of continuous operation, ideal for extended outings

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length) 19 mm, f1.0
Focus Mode Focus Ring
Detection Range 900 m
Focusing Distance 1.9 m
Magnification 1.8x to 14.4x (8x)
Field of View (H × V), Degrees / m @ 100 m 13.7° × 10.3°/24.0 m × 18.0 m
Image Display
Display 1024 × 768, 0.39-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply 5 VDC, 2 A; Supports External Power Supply
General
Protection Level IP67
Dimension 172.5 mm × 56.0 mm × 60.8 mm
Weight 282 g without battery
Working Temperature -30°C to +55°C
