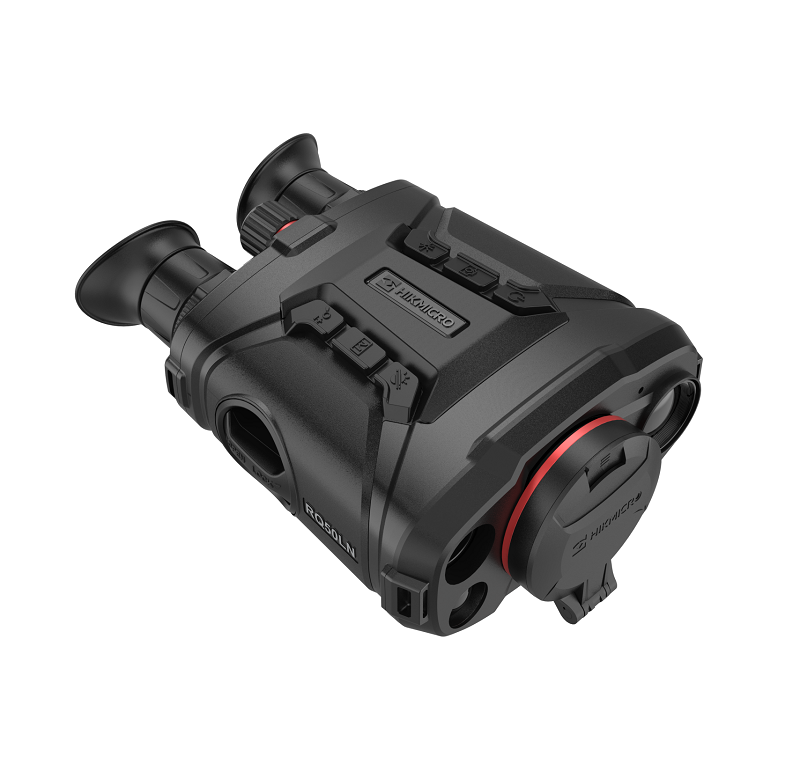

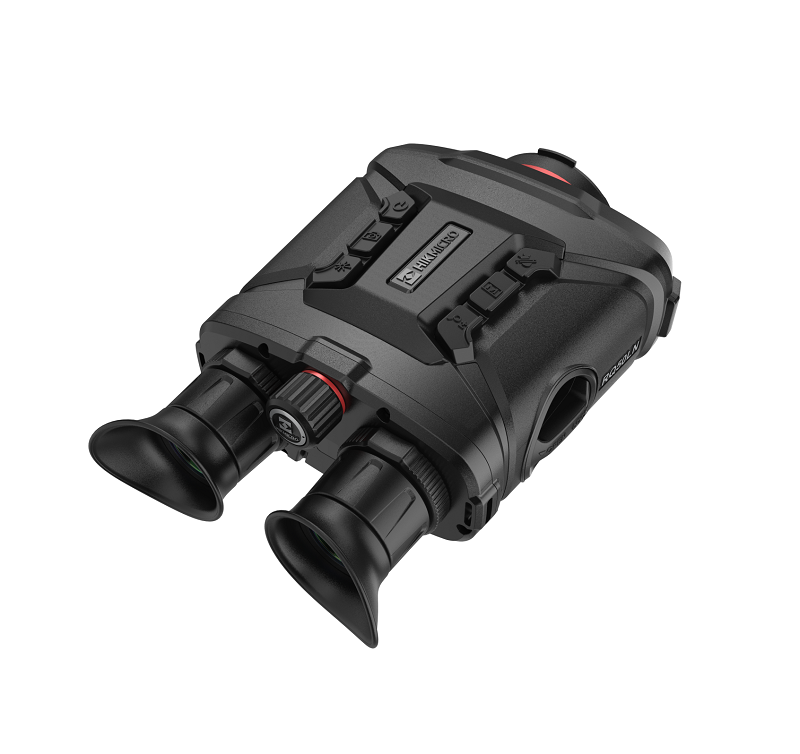

HikMicro Raptor RH50LN 50mm Handheld Thermal Fusion Optical IR LRF Binoculars. These cutting-edge binoculars combine industry-leading thermal imaging with a high-performance day and night vision camera, offering unmatched detection capabilities in a user-friendly package. Imagine being able to detect a person-sized object from up to 2,600 meters away—this is the power of the Raptor RH50LN. With a built-in laser rangefinder that accurately measures distances up to 1,000 meters, you can assess your surroundings with incredible precision.
The thermal image clarity is achieved through the advanced 384 x 288 pixel sensor, boasting a sub 20 NETD, which is currently the best on the market. Coupled with a remarkable F0.9 aperture 50mm lens system, these binoculars ensure optimal thermal signal transmission, allowing you to see fine details even in adverse weather conditions.
Equipped with a high-quality day and night optical camera, the Raptor RH50LN delivers detailed full-color images during the day, while transitioning to infrared mode at night, enabling visibility up to 400 meters in low light conditions. Its image stabilization feature minimizes hand shake, making it easier to focus on distant objects, thereby enhancing your overall viewing experience.
Designed for comfort, the ergonomic chassis allows for extended use without discomfort. Key controls are conveniently located for easy access, even in darkness. The device is powered by three 18650 batteries, providing up to 8 hours of runtime, and features a detachable battery compartment for quick changes. The interpupillary distance is adjustable from 60mm to 70mm, ensuring a comfortable fit for all users. Additionally, the automatic display shut-off feature prevents light leakage when the binoculars are taken away from your face, enhancing stealth during nighttime observations.
Thermal Module | |
---|---|
Image Sensor | Vox Uncooled Focal Plane Arrays |
Resolution | 384 x 288 |
Pixel Interval | 12 μm |
NETD | < 20 mK (@25°C, F# = 1.0) |
Lens (Focal Length) | 50 mm |
Aperture | F0.9 |
Digital Zoom | 1 ×, 2 ×, 4 ×, 8 ×, 16 × |
Magnification | 3.4 × |
Detection Range | 2,600 m |
Focusing Distance | 5 m |
Focus Mode | Manual |
Frame Rate | 25 Hz |
Field Of View (H × V) at 100 m | 8.8° × 7.0° (15.4 m × 12.2 m) |
Optical Module | |
Image Sensor | 1.88” Progressive Scan CMOS |
Resolution | 2,560 × 1,440 |
Focal Length | 31 mm |
Aperture | F1.2 |
Image Enhancement | Yes |
Illumination | 0.001 Lux @ (F1.0, AGC On) |
Smart IR | Yes |
IR Illuminator – Wavelength | 940 nm |
Viewing Range at Night | 400 m |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-Ion Battery |
Battery Operating Time | 8 Hours |
Type-C Power Supply | Yes |
General | |
Protection Level | IP67 |
Working Temperature | -30°C to 55°C |
Working Humidity | < 90% |
Storage Temperature | -40°C to 70°C |
Interpupillary Adjustment Range | 60 mm to 70 mm |
Eye-Relief | 15 mm |
Dimension | 217.5 mm × 155.0 mm × 87.5 mm |
Weight | 1,120 g |
Laser Rangefinder | |
Measuring Range | 1,000 m |
Safety Class for Laser | Class 1 |
Wavelength | 905 nm |
Measurement Accuracy | ± 1 m |
