Hikmicro Raptor TS56-75Q Thermal Fusion Binoculars (GPS, Compass, LRF, 640 x 512, 75mm)

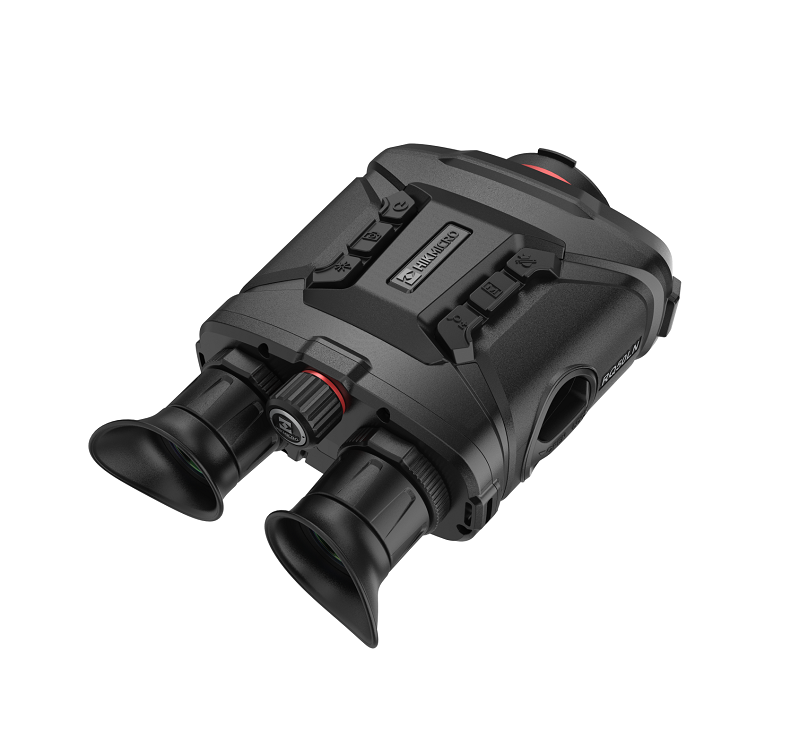

HIKMICRO Raptor TS56-75Q 75mm Handheld Thermal Fusion Optical IR LRF Binoculars - Image 2

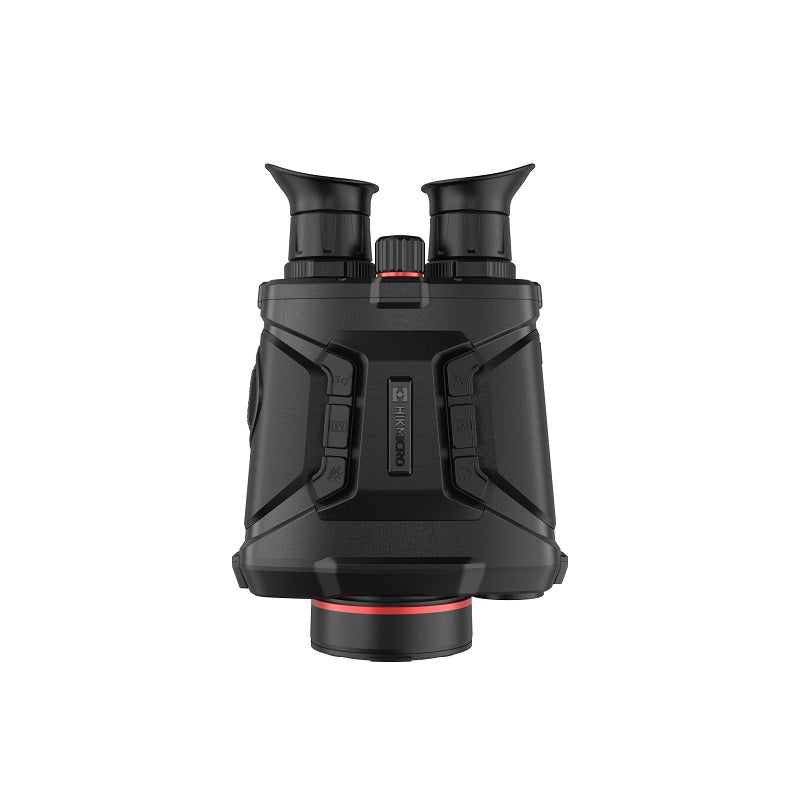

HIKMICRO Raptor TS56-75Q 75mm Handheld Thermal Fusion Optical IR LRF Binoculars - Image 3

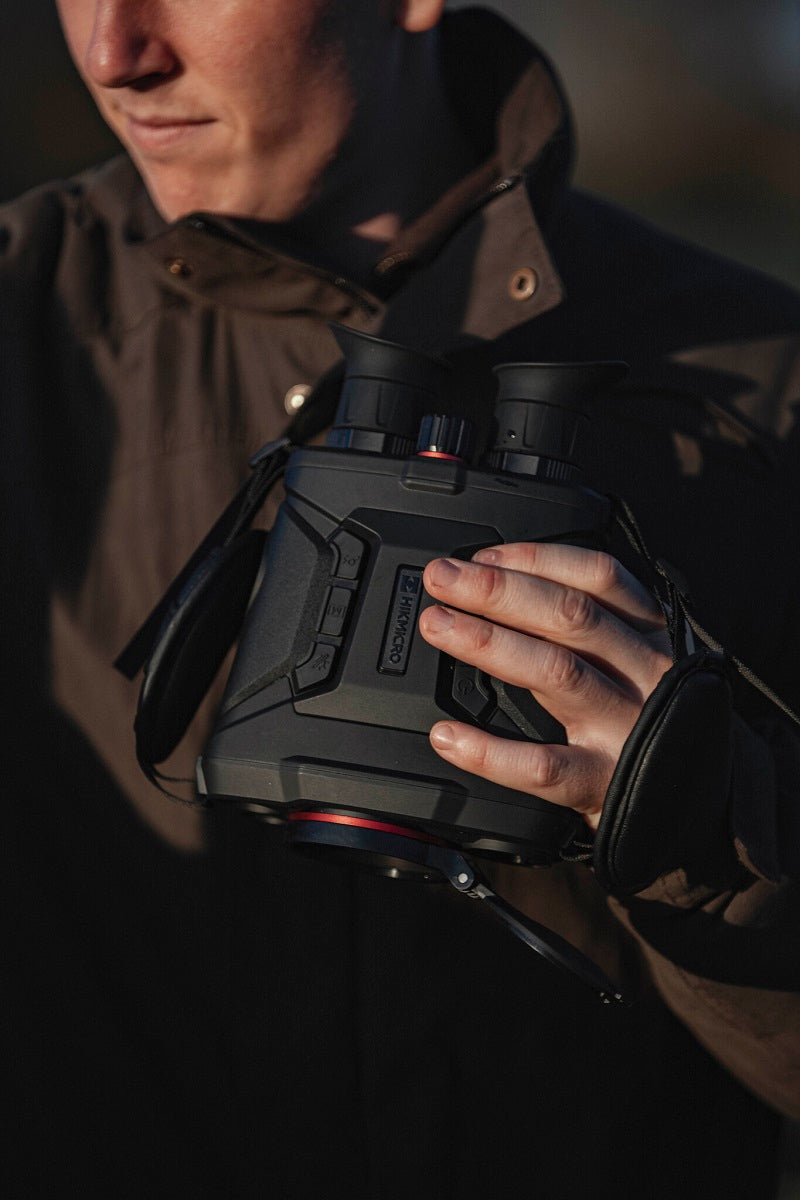

HIKMICRO Raptor TS56-75Q 75mm Handheld Thermal Fusion Optical IR LRF Binoculars - Image 6
HIKMICRO Raptor TS56-75Q 75mm Handheld Thermal Fusion Optical IR LRF Binoculars - Image 5

Hikmicro Raptor TS56-75Q Thermal Fusion Binoculars (GPS, Compass, LRF, 640 x 512, 75mm)

Hikmicro Raptor TS56-75Q Thermal Fusion Binoculars (GPS, Compass, LRF, 640 x 512, 75mm) Description The HIKMICRO Raptor TS56-75Q Thermal Fusion Binoculars are at the forefront of outdoor observation technology, designed for both enthusiasts and professionals. These advanced binoculars combine a high-performance thermal sensor with a powerful optical module, allowing users...
Vendor: Hikmicro
SKU: TS56-75Q
R 153,649.00
R 153,649.00

Hikmicro Raptor TS56-75Q Thermal Fusion Binoculars (GPS, Compass, LRF, 640 x 512, 75mm) Description

The HIKMICRO Raptor TS56-75Q Thermal Fusion Binoculars are at the forefront of outdoor observation technology, designed for both enthusiasts and professionals. These advanced binoculars combine a high-performance thermal sensor with a powerful optical module, allowing users to observe targets in vivid detail, whether in complete darkness or challenging weather conditions. Imagine tracking wildlife during a nighttime expedition or spotting a distant object while hiking—this device makes it all effortless.

Equipped with a 12 μm infrared thermal sensor offering NETD < 20 mK sensitivity, the Raptor TS56-75Q ensures crisp thermal images. The 2,560 x 1,440 high-resolution optical sensor enhances your viewing experience, allowing you to switch between thermal, optical, and fusion modes for the best possible clarity. With a laser rangefinder capable of measuring distances up to 1,000 m, you will never miss a detail, making this binocular a reliable companion for hunting, hiking, and search and rescue operations.

Setting up the HIKMICRO Raptor is a straightforward process, even for first-time users. The binoculars are lightweight, well-balanced, and designed for comfortable handling, enabling extended use without fatigue. With advanced features such as GPS, a digital magnetic compass, and integrated video recording capabilities, you can capture every moment and create lasting memories of your adventures.


Features

  • 640 × 512 resolution with a high-sensitivity 12 μm thermal sensor
  • NETD < 20 mK sensitivity for precise thermal imaging
  • 2,560 × 1,440 high-resolution CMOS optical sensor
  • Built-in 850 nm IR illuminator for low-light conditions
  • Laser rangefinder with a measuring distance of up to 1,000 m (± 1 m accuracy)
  • Thermal detection range of up to 3,600 m
  • Support for thermal mode, optical mode, and image fusion mode
  • 1,024 × 768 resolution OLED display for clear visuals
  • Intelligent features including PIP, GPS, DMC, and local album support
  • Video and snapshot recording capabilities with built-in 64 GB EMMC

Specifications

Thermal Module
Image Sensor Vox Uncooled Focal Plane Arrays
Resolution 640 × 512
Pixel Interval 12 μm
NETD < 20 mK (@25°C, F# = 1.0)
Lens (Focal Length) 75 mm
Aperture F1.2
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×, 16 ×
Magnification 5.1 ×
Detection Range 3,600 m
Focusing Distance 7.5 m
Focus Mode Manual
Frame Rate 25 Hz
Field Of View (H × V) 5.9° × 4.7° (10.3 m × 8.2 m at 100 m)
Optical Module
Image Sensor 1.88” Progressive Scan CMOS
Resolution 2,560 × 1,440
Focal Length 31 mm
Aperture F1.2
Illumination 0.001 Lux @ (F1.0, AGC On)
IR Illuminator Wavelength 850 nm
Viewing Range at Night 400 m
Power Supply
Battery Type Replaceable and rechargeable Li-ion battery
Battery Operating Time 8 hours (hotspot function off)
Type-C Power Supply Yes
General
Protection Level IP67
Working Temperature -30°C to 55°C
Weight < 1.45 Kg
Dimension 230.0 mm × 155.0 mm × 88.0 mm
