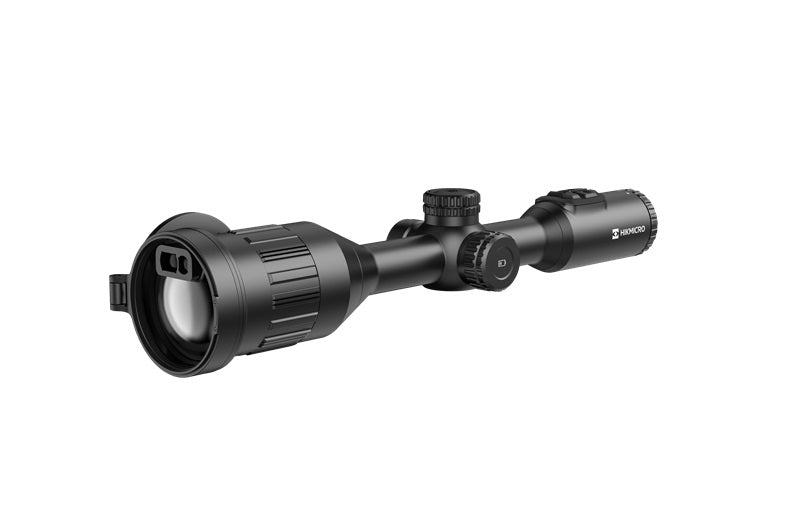

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope - Image 2

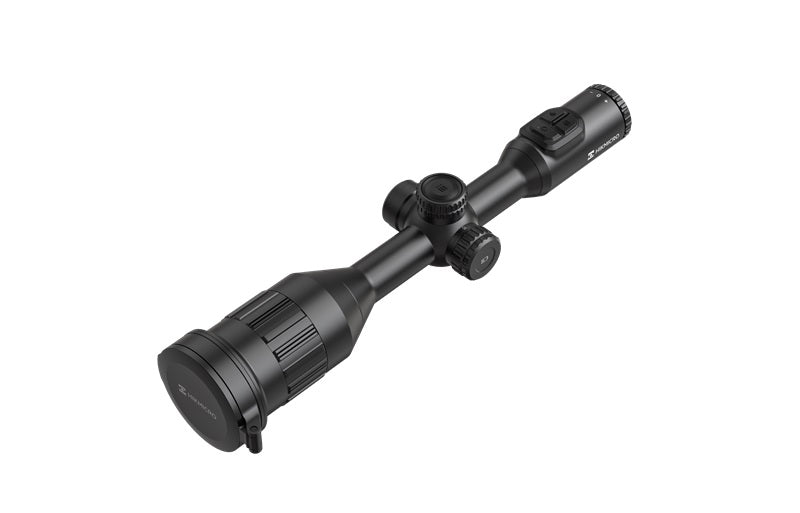

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope - Image 3

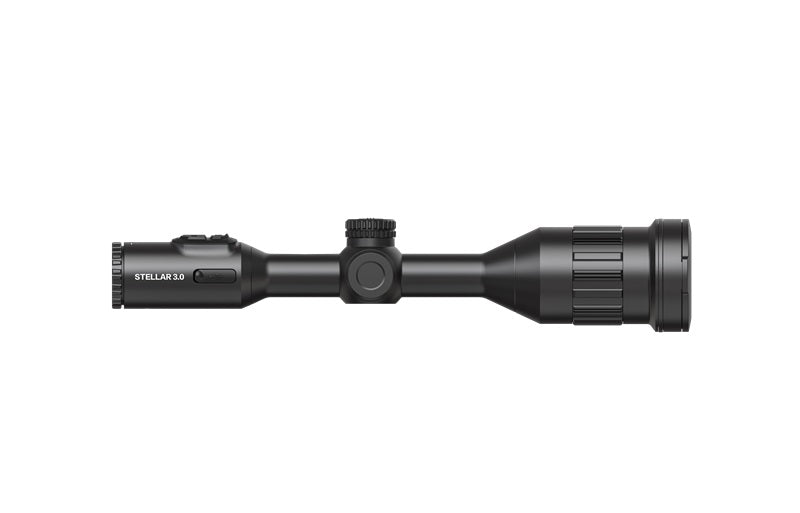

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope - Image 4

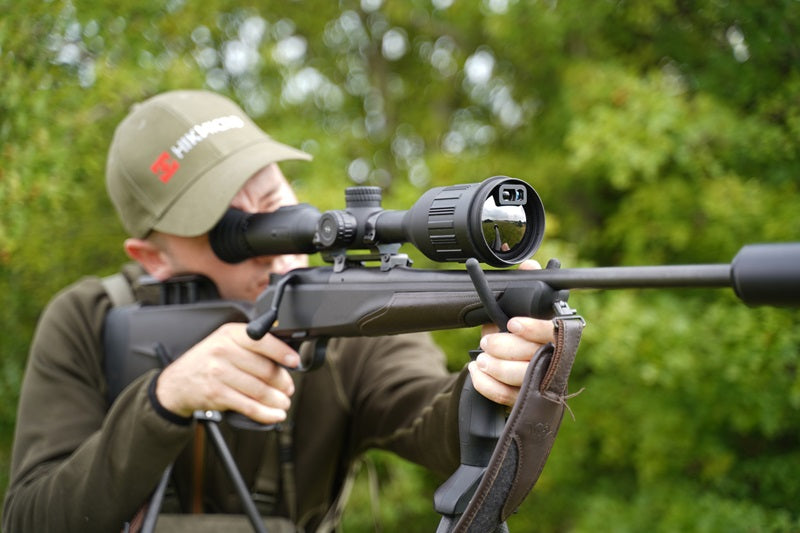

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope - Image 5

Hikmicro Stellar SX60L 3.0 Thermal Vision Riflescope (LRF, 1280x1024, 60mm)

Hikmicro Stellar SX60L 3.0 Thermal Vision Riflescope (LRF, 1280x1024, 60mm) Description The HIKMICRO Stellar SX60L 3.0 Thermal Vision Riflescope is an advanced thermal imaging scope designed for avid hunters and outdoor enthusiasts. Equipped with a powerful 1,280×1,024 resolution thermal detector and a sensitivity rating of NETD < 18 mK, this...
Vendor: Hikmicro
SKU: SX60L 3.0
R 128,999.00
R 128,999.00

Hikmicro Stellar SX60L 3.0 Thermal Vision Riflescope (LRF, 1280x1024, 60mm) Description

The HIKMICRO Stellar SX60L 3.0 Thermal Vision Riflescope is an advanced thermal imaging scope designed for avid hunters and outdoor enthusiasts. Equipped with a powerful 1,280×1,024 resolution thermal detector and a sensitivity rating of NETD < 18 mK, this scope ensures that even the most subtle details are captured with precision, regardless of environmental conditions. The latest image processing algorithm, Image Pro 2.0, enhances clarity and contrast, allowing users to spot targets quickly and accurately, making it an ideal companion for field and forest hunting.

Imagine being out in the great outdoors, where the thrill of the hunt meets cutting-edge technology. The HIKMICRO Stellar SX60L's 2,560×2,560 resolution 1.03-inch AMOLED display provides a vivid viewing experience, enabling you to track your targets with ease. Its built-in laser rangefinder with a 1,000 m range and ballistic calculation ensures that every shot counts. With a lens detection range of up to 3,100 m, this scope is perfect for both short and long-range shooting.

The HIKMICRO commitment to quality is evident in every aspect of the Stellar SX60L 3.0. As a part of the Hikvision group, a global leader in security technology, HIKMICRO aims to make professional-grade thermal imaging accessible to both amateurs and seasoned veterans alike. Lightweight and rugged, this riflescope is designed for reliability in various weather conditions, making it the perfect tool for all your hunting adventures.


Features

  • 1,280 x 1,024 resolution @12 μm thermal detector
  • High sensitivity thermal module NETD < 18 mK (@ 25°C, F# = 1.0)
  • 60 mm, F1.0 lens with detection range up to 3,100 m
  • 2,560 × 2,560 resolution 1.03-inch OLED display
  • Built-in lens laser rangefinder up to 1,000 m, with ballistic calculation
  • Rechargeable internal batteries and external battery, 10 hours continuous operation
  • High shock resistance up to 1,000 g/0.4 ms

Specifications

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 1,280 × 1,024
Frame Rate 25 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@ 25°C, F# = 1.0)
Lens (Focal Length) 60 mm, F1.0
Focus Mode Focus Ring
Detection Range 3,100 m
Focusing Distance 6 m
Magnification 2.5×-28.5×; Support 1× step value of continuous zooming
Field of View (H×V), Degrees / m @100 m 14.6° × 11.7° / 25.6 m × 20.5 m
Image Display
Display 2,560 × 2,560, 1.03-inch OLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -5D to 3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 2.0 Yes
HSIS (HIKMICRO Shutterless Image System) Yes
System
Record Video On-board Video Recording
Capture Snapshot Yes
Audio Recording Yes
Recoil-activation Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Zeroing Profiles 5
Recoil 1,000 g/0.4 ms
Freeze Zeroing Yes
Local Album Yes
Power Supply
Battery Type Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Battery Operating Time 10 hours continuous running (@ -20°C, Zoom Pro, LRF on)
Type-C Power Supply 5 V DC/2 A, USB Type-C interface; Supports QC3.0
General
Mounting Standard 30 mm
Protection Level IP67
Dimension 452.6 mm x 94.3 mm x 78.9 mm
Weight 860 g without external battery
Working Temperature -30°C to 55°C (-22°F to 131°F)
Centre Height 41 mm
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Measuring Range 1,000 m
Measurement Accuracy ±1 m
Measuring Range 10 m
